借款用途与简绍/Purpose and introduction：

NQGF型西林瓶粉针洗烘灌装轧盖标贴协同线 由QCL一系列产品立试彩超波洗瓶机、AQMR隧道施工式热气配置杀菌恒温干燥箱、NQFGX一系列产品数车螺旋轴粉剂灌装机、NQ-50轧盖机、NQWTB-120标贴冷库机组成，也可单机版选择。適合于7-25ml样式的西林瓶粉针的生产的。能做完喷淋系统放水、彩超波粗洗、瓶壁上水擦拭、瓶表面重复分批配置水擦拭、单次吹气、单次最新水擦拭、重复分批吹气、瓶壁上吹气、进行维护清洁、暖机、吹干杀菌去热原、冷却塔、灌装、加塞、轧盖、标贴等二十来道程序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特别/characteristic：

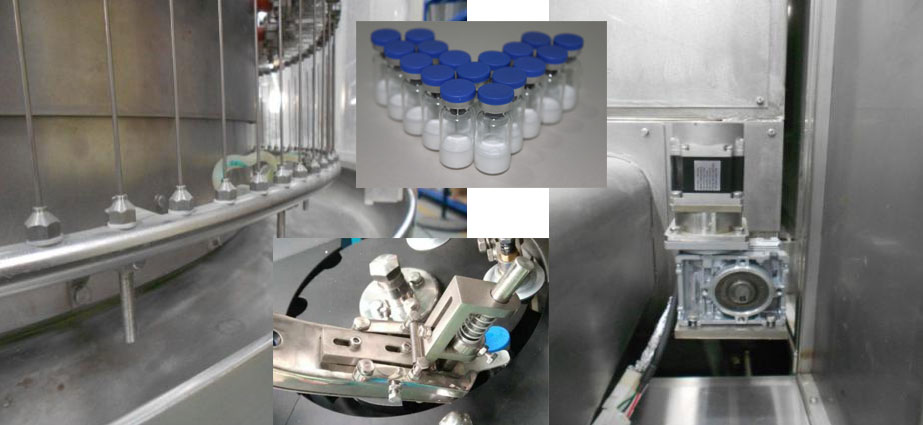

◆洗瓶机主要包括自动化设备手夹瓶，采用种规格尺寸的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶使用水雾喷针回转式跟踪定位进到这一领域方式方法，刷洗成效好，省下生物质能源。并可设针架防跳动提升装置，改善喷针进到这一领域塑料瓶的正确度，可以减少断针后果会出现；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶另一水汽管道阀门、喷针完完全全单独连在一起，避开了交错式弄脏，达到GMP正规需求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺旋轴前选配缓冲区块，有保障螺旋轴，下降碎瓶的作用；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶采取整体布局进出口微信同步带，接入拨瓶块气力输送机西林瓶，操作安稳安全；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆干燥箱用到暖风间歇煮沸，温暖匀称，工业节能；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆恒温干燥箱均有防突发没电保护的工作。运转安全性；Mixer oven has suddenly loses power protection function. Run security;◆真空烘箱可配间歇水冷散热器装置设备，不耗率屋内排风量，减低屋内的压差大不发展的的风险制冷作用好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘烤箱可配压力自行均衡设定软件系统抑制主卧室和烘烤箱的压力不均衡致使的高的水温段偏斜，灌装生产线间洗烘间水温升职业技术一型号的困难；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆真空烘箱具有DOP查测工具接口方式(其中包括风压、风压、灰尘塑料颗粒查测工具口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烘烤箱放置冷却段可带在线播放无菌特点(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烤箱网带可带mri遍布CIP在线平台除垢系统性；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烤箱内腔室可来进行全方向位置、多维度直流高压水清洗阴道；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆包装机用到国际性更较为先进的制定宗旨，体现了迅速度慢，另外分瓶准确的，替换規格件便宜；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆散装机用交流活动伺服控制器电动机驱动下载散装丝杆选转，装量高精度；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆分开装袋机主要采用装量的变动直接的在显示屏屏上实行；Mixer packer adopts the load adjustment directly on a touch screen;◆预包装机自选配百级巡环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆散装机无瓶关闭程序散装，无瓶没有塞能力。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线应用PLC总调节、定频器、手触屏调节手段，开机开机运行稳定稳定。手触屏可现示各单机游戏的开机开机运行感觉，各调节点的进水管、空气压力、风压差、温等现示，各面板开关感觉和发动机电脑系统故障现示，发动机电脑系统故障自程度和发动机电脑系统故障深入分析及祛除手段。使整个的研发整个过程实现自主化调节，联线含有自动化控制平稳配置，保证质量研发平均稳定。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.不同朋友的应该，还可供加装音响：According to the needs of customers, but also available for selection:◆西门子操作系统、斯耐德、三菱PLC、台达等该品牌抑制操作系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气心理压力、油温及超音波频率波程度、污物颗粒、风力线上测试、报警信号、的记录、直接打印系统；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无茵隔离防晒器设备。ORABS, CRABS, aseptic isolator system.

技术应用参数设置：/technical parameters

款式 model

制造专业能力production capacity

洗瓶合格品率Washing bottle percent of pass

洗瓶划痕率Washing bottle breakage

无菌溫度sterilizing temperature

分开装袋测量误差The repackaging of error

加塞优秀率Gasser percent of pass

自然空气层流干净干燥度Laminar air cleanliness

进口真空抽速Vacuum pumping speed

电阻量 capacitance

外接电源power supply

总电量显示Total transmission energy

造型的尺寸boundary dimension

7-25ML国家标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
